Deploy Jump-box

Deploy a jump-box to access application.

In order to attack our applications in this workshop. You will be submitting a sample malware file to test with. This CloudFormation template creates a EC2 to alleviate the need to disable any current anti-virus tooling.

A Key Pair is required before continuing with this CloudFormation deployment. If you need help creating a Key Pair -> Create a key pair

-> CLICK HERE to see how to create key pair

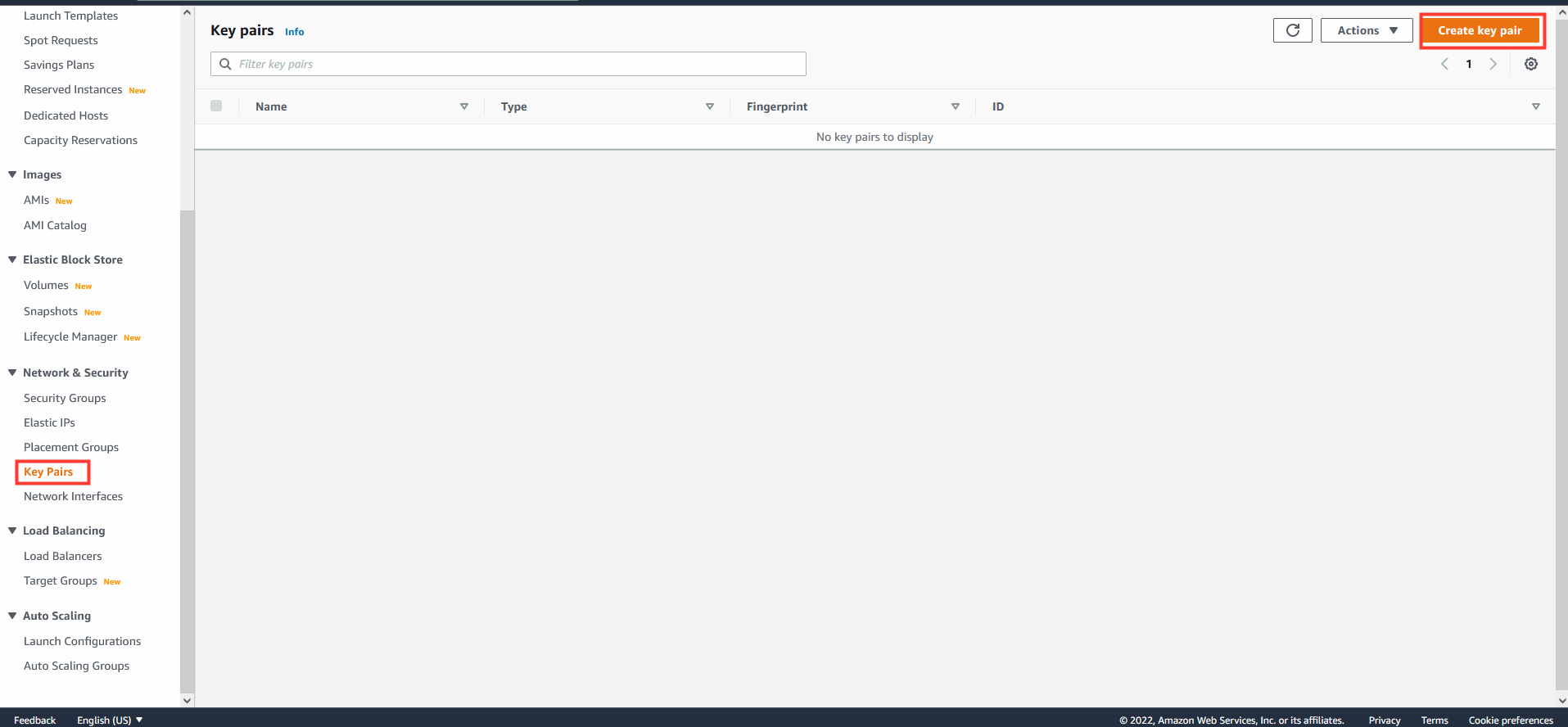

  • In AWS navigate to EC2
  • In the left-hand menu, under Network & Security select Key Pairs
  • Click Create Key Pair
  • Name: immersion-kp
  • Private Key Format: .pem
  • Click Create key pair
  • Save the Key Pair to your local machine. It will be needed later.

C1NS1 C1NS1



To deploy the jump-box click Launch Stack

Launch Stack

-> CLICK HERE to see step by step instruction to deploy CFT

  • Click Next

C1NS1

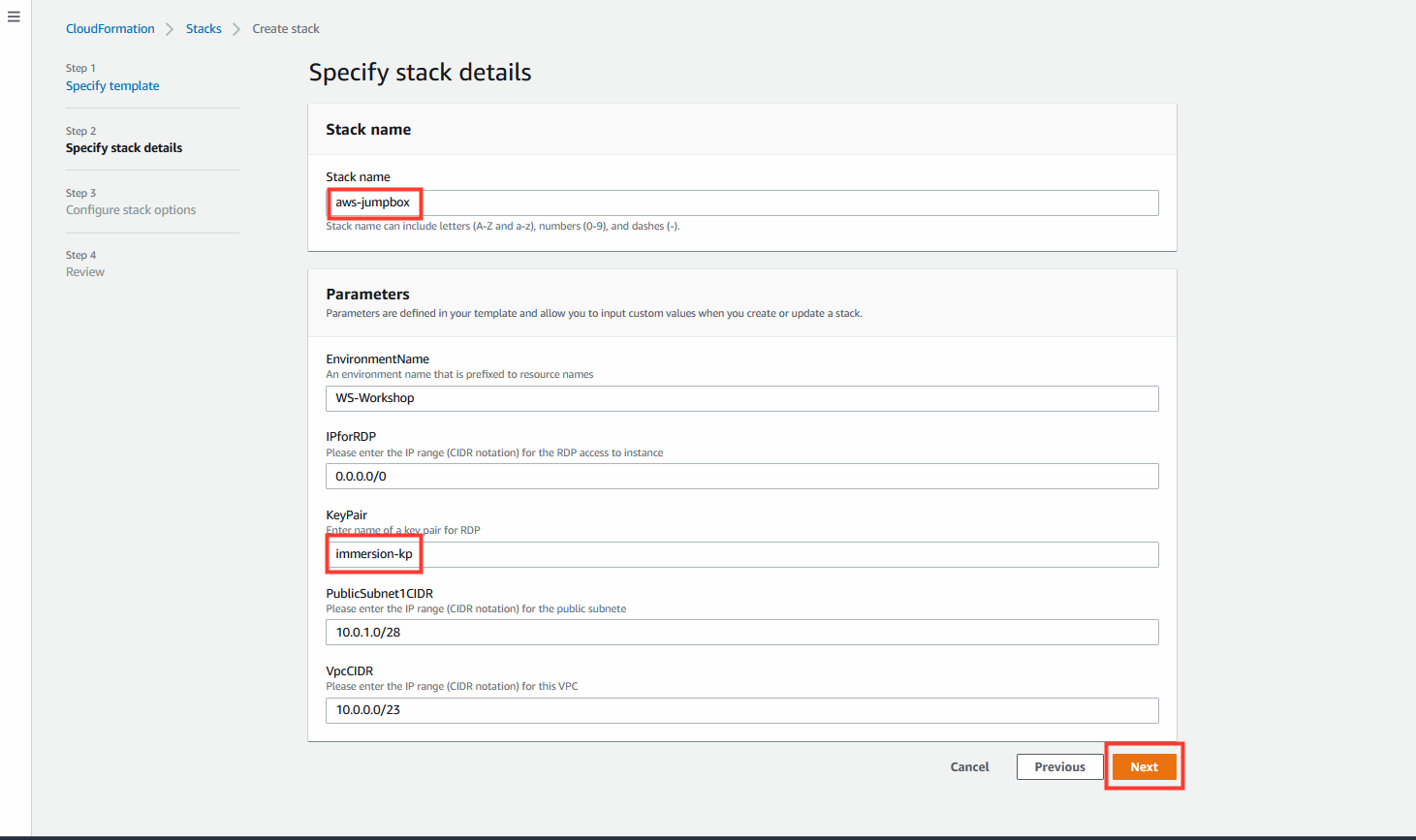

  • Leave the default parameters values, click Next

C1NS1

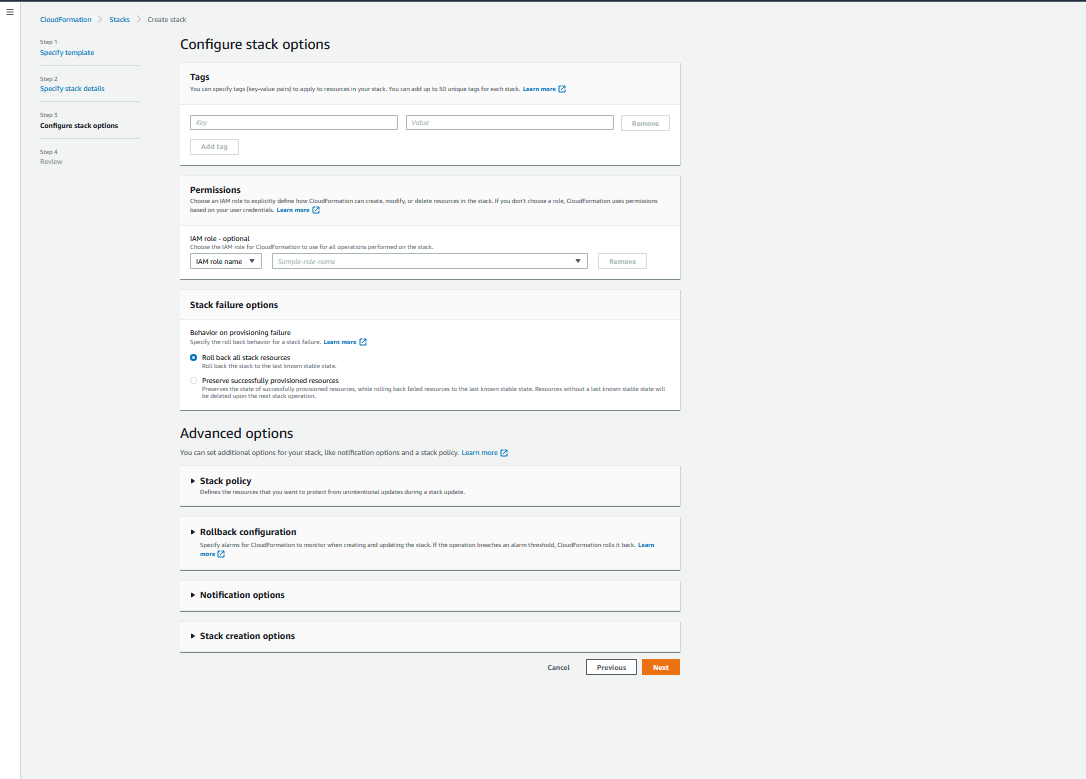

  • Optional: configure stack option with tags, otherwise click Next

C1NS1

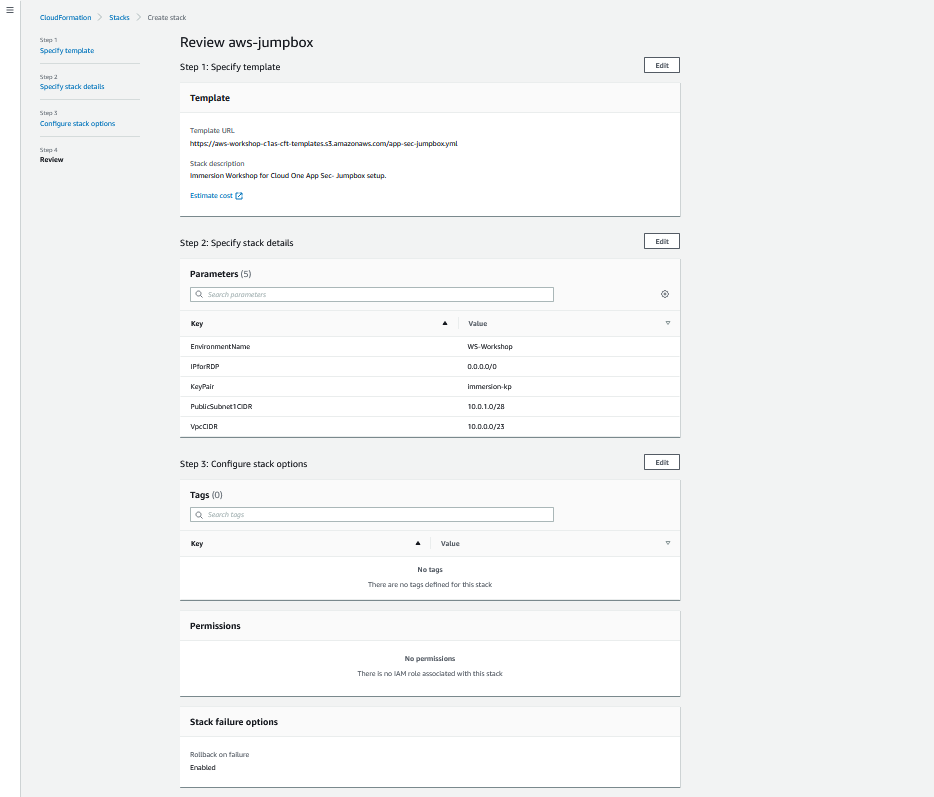

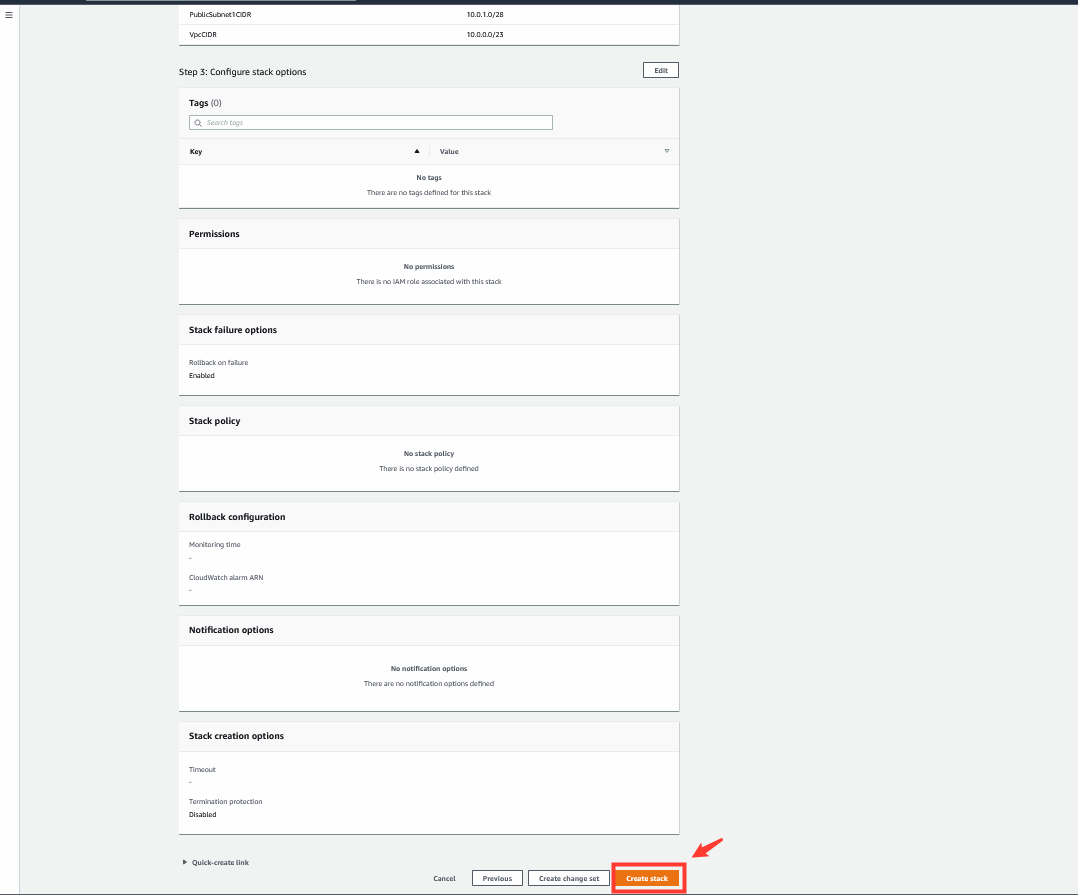

  • Review and click Create Stack

C1NS1 C1NS1

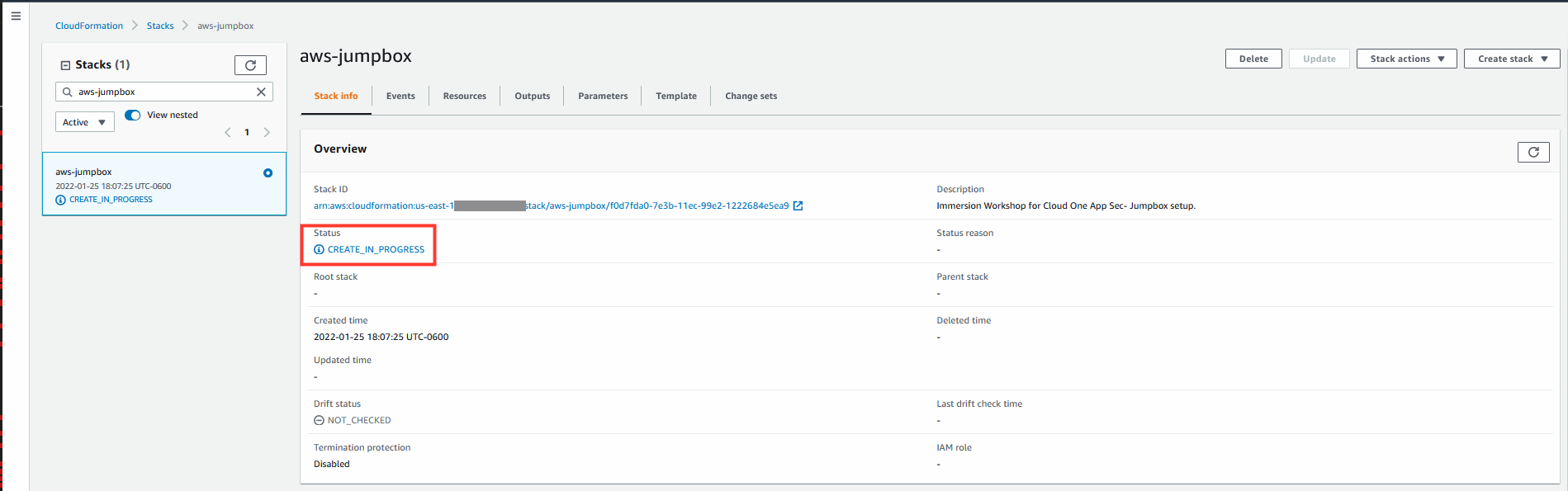

  • Wait for cloudformation deployment to complete

C1NS1 C1NS1



C1NS1


Access my EC2 Instance

-> CLICK HERE to see step by step instruction to connect via RDP

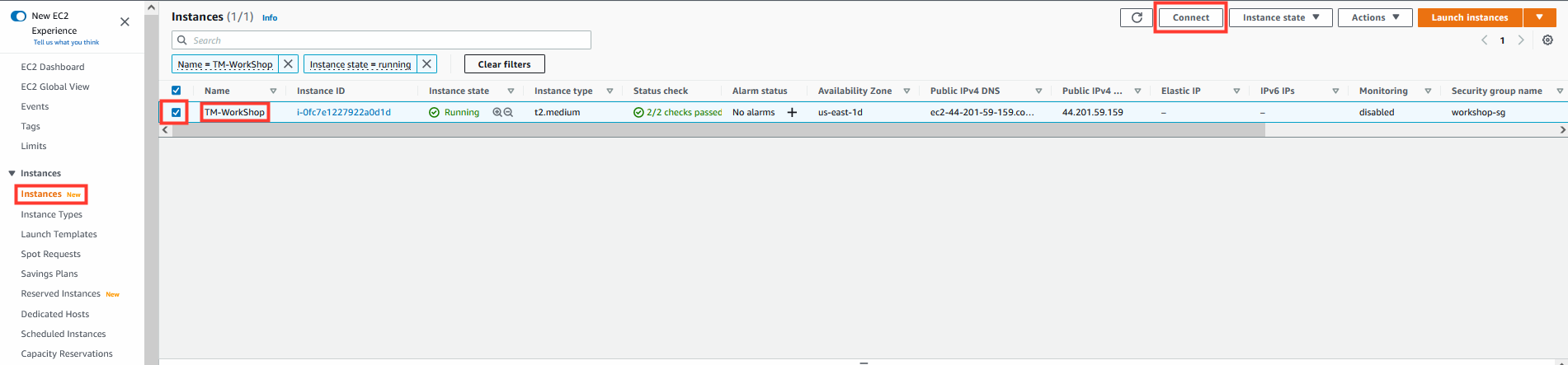

  • Navigate to AWS EC2
  • Select instance Name: TM-Workshop
  • Click Connect

C1NS1

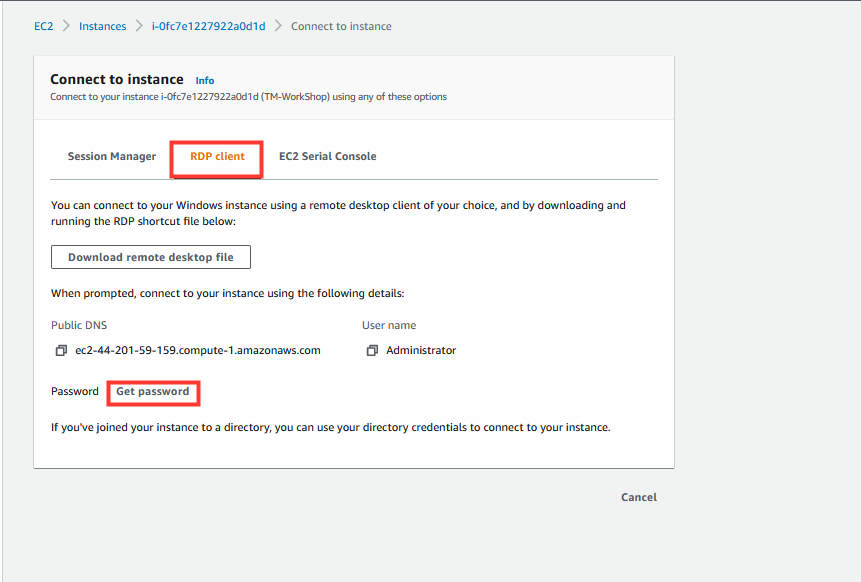

  • Select the RDP client tab

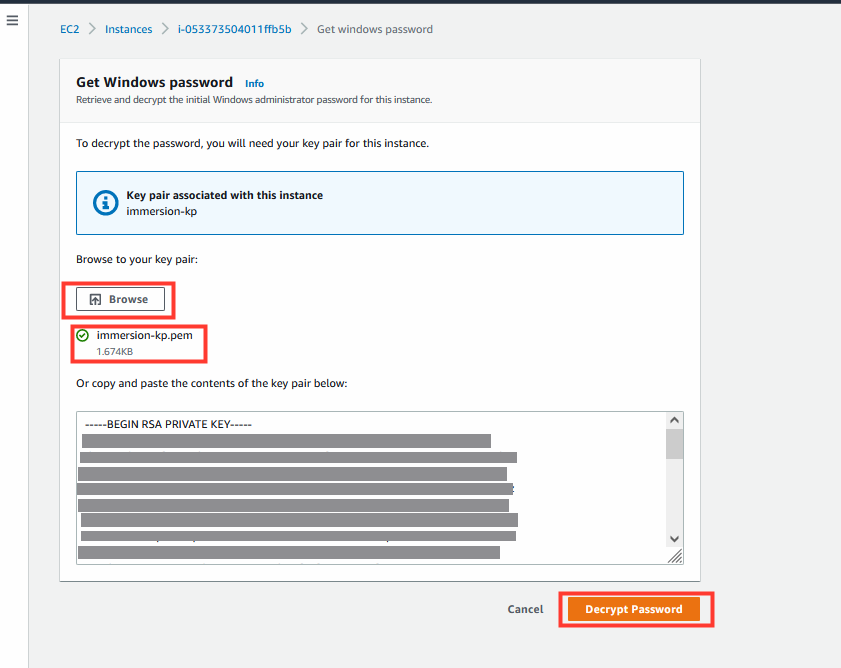

  • Click Get password
  • Click Browse
  • Select the immersion-kp.pem file saved earlier
  • Click Decrypt Password

C1NS1 C1NS1

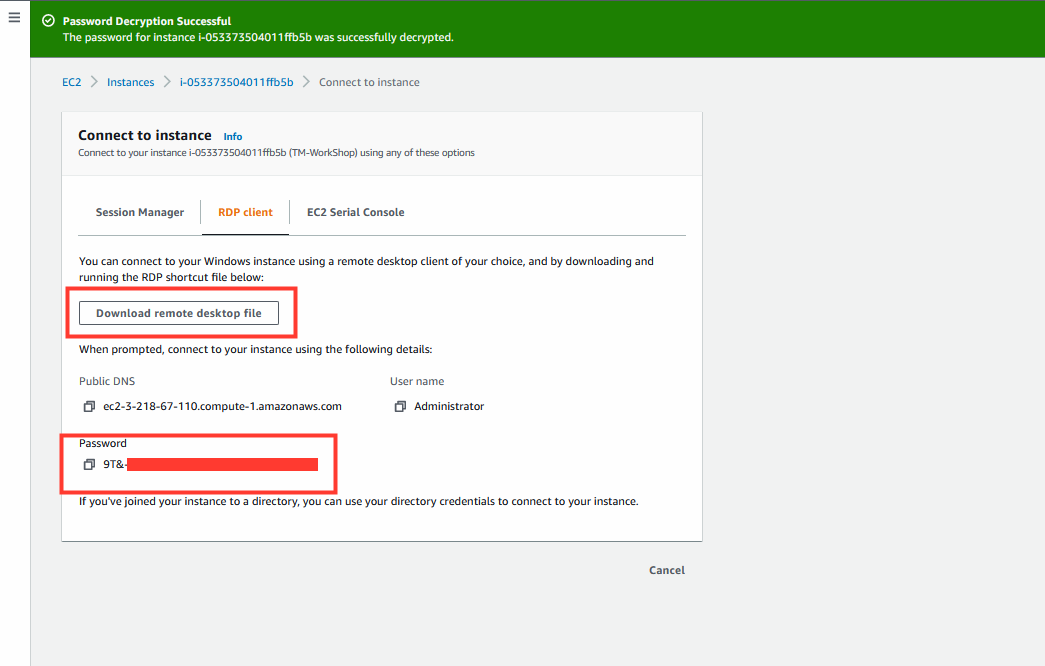

  • Copy down the Password
  • Select Download remote desktop file

C1NS1

  • Run the RDP file to start the connection

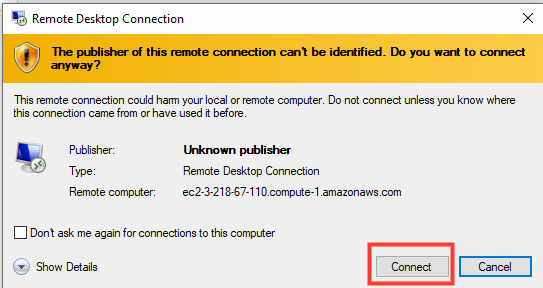

  • Click Connect

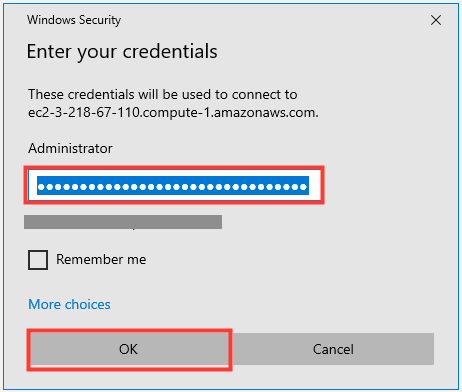

  • Paste the decrypted password and click ok

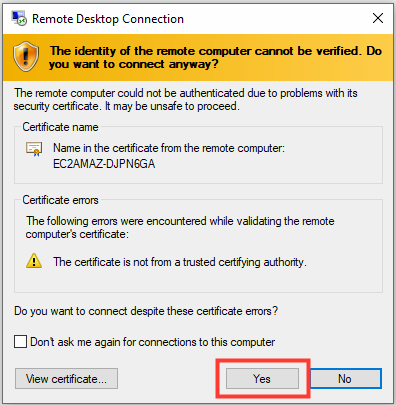

  • Click Yes

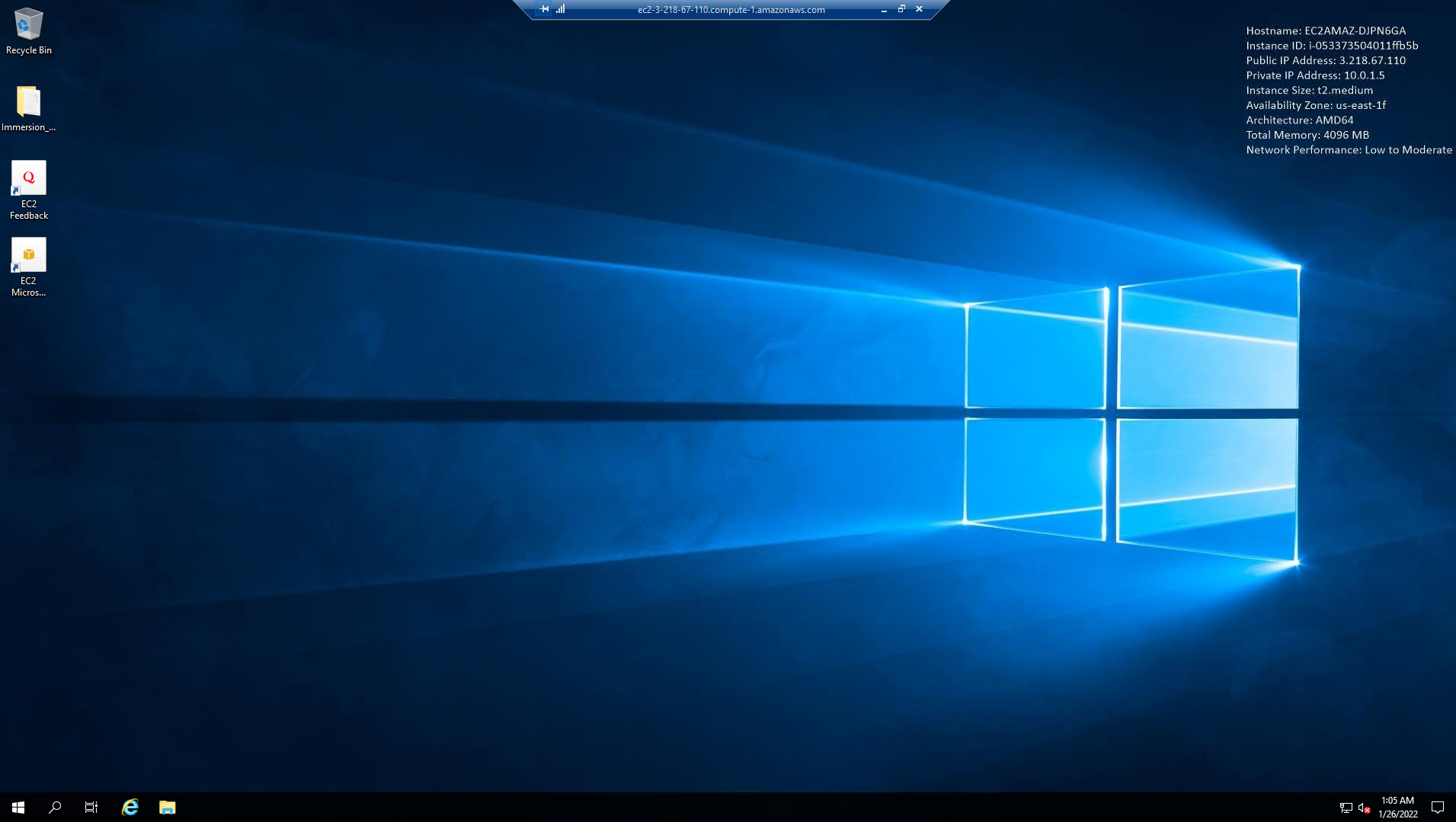

C1NS1 C1NS1 C1NS1 C1NS1
